DOOR CONTACT

Developed by SecurEx Technology and manufactured by Wath Group, these security contacts are available in four standard grades which have been designed to meet the requirements for Grade 2 & Grade 3 applications:

• SX-ID-P211X1A GRADE 2 Fully Encapsulated Alarm Contact With Tamper Loop
• SX-ID-P212X1A GRADE 2 Fully Encapsulated EOL Alarm Contact With Tamper Loop
• SX-ID-P213X1A GRADE 2 Fully Encapsulated Supervised SEOL Alarm Contact With Tamper Loop
• SX-ID-P214X1A GRADE 3 Grade 3 Fully Encapsulated & Supervised TEOL Alarm Contact With Tamper Loop

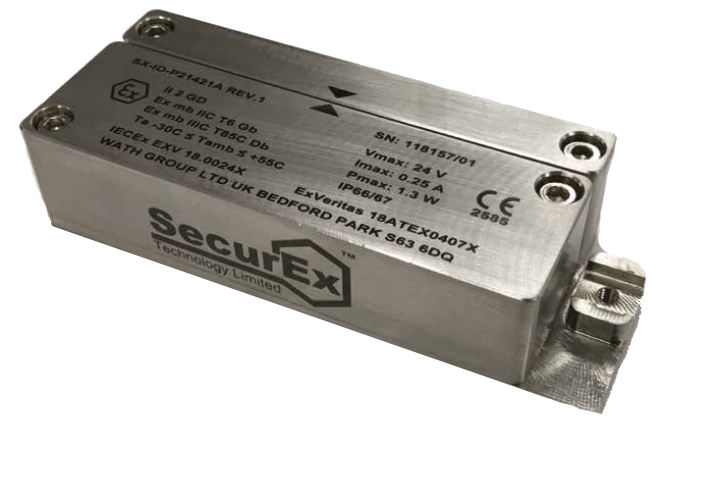

Each contact set comprises of a robust, fully encapsulated, certified magnetically actuated reed switch assembly with matching coded magnet which has been designed for easy alignment on site. Being fully encapsulated all contacts are inherently resistant to tampering. However, Anti Tamper mounts are provided as standard with both the Grade 2 SEOL & Grade 3 TEOL versions and Magnetic Anti Tamper is also provided in the Grade 3 product. The small-footprint contact assembly also incorporates an integral earth bonding point for enhanced safety. Additionally, custom EOL, SEOL & TEOL resistance values can optionally be specified to special order if required.

An optional roller door adaptor kit is also available, making this product suitable for virtually all applications and providing both enhanced safety and security for personnel.

DEFINITIONS

Grade 2 Contacts
These are suitable for use in Ungraded, Grade 1 and Grade 2 systems. These magnetic contacts are required to have a mechanical tamper and/or be encapsulated/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.

Grade 3 Contacts
Grade 3 contacts are suitable for a wide range of applications and can be used in Ungraded, Grade 1, Grade 2 and Grade 3 systems. These magnetic contacts are required to have a mechanical tamper and/or be encapsulated/sealed. End of Line (EOL) resistors are also an option. They should also detect or be immune to rogue magnets.
